Auto car parts for HINO F17E Piston With Pin & Clips 13211-2481/13226-1180C
Specifiions:
| ENGINE PISTON | ENGINE MODEL | F17E |
| Common Materials | Forged Aluminum Alloy 4032 & 2618 |
| Characteristics | Resistance to abrasions & burn characteristics |
| Surface Treatment | High wear resistance, perfect Storage oil and performance surface treatment |
Payment Terms
• T.T / Western Union / Money gram
Package & Delivery
• Neutral Carton Or Your requested Box
• Send out within 2-7 working days
Before your purchase, please double check your old turbocharger part number and O.E.M number to ensure its compatibility.
If you are not sure about the part you need, please feel free to contact us. We are always at your disposal.
Piston types
Piston skirt and crown
Consist of a steel piston head and an aluminium piston skirt which have a moveable connection to each other via the piston pin. Due to great strength and low wear and tear, it is possible to achieve low exhaust emission values for diesel engines that are subjected to particularly high loads.
Piston comes with bushes
In order to make it possible to increase the loads to which the pin boss can be subjected, this piston has pin boss bushes that are made of a special material
Alfin Pistons
Alfin is inserted within the ring grooves when casting. Alfin is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top or second ring groove.
Cooling channel piston
Cooling channel piston effectively reduce piston body working and groove land temperature under high temperature working condition.
PISTON SURFACE TREATMENT
Piston with Tin coating
Tin is coated by exectroanalysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner.
Pistons with Phosphating
The phosphating is aimed to improve initial running-in performance. The phosphating layer is easy to wear off and helpful to improve running-in.
Piston roof anodizing
The piston roof is anodized by electrobath, forming thin layer of Al O . This treatment will improve heat resistance, heat conductivity and anticorrosion, it helps prevent piston roof burn-up.
Graphipe printing and spratyed at piston skirt
Graphite is characterized as good lubriing, which helps lubricant adhering to coating surface.
Related Products
Description:
A series of engine models for HINO as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| HINO | W06E | 13216-1791B | 6 | 104 | 106.15 | 60.1 | 35 |
| HINO | EH700 | 13216-1181B | 6 | 110 | 121.3 | 69.3 | 39 |
| HINO | H07C(1500) | 13216-2300 | 6 | 110 | 121.5 | 69.5 | 39 |
| HINO | H07C(2290) | 13216-2290 | 6 | 110 | 121.5 | 69.5 | 39 |
| HINO | H07D | 13211-2260 | 6 | 110 | 100 | 57.2 | 37 |
| HINO | H07D | 13211-1980 | 6 | 110 | 100 | 57.2 | 37 |
| HINO | EB400 | 13216-1230 | 6 | 120 | 155.45 | 86 | 45 |
| HINO | EM100 | 13216-1370 | 6 | 124 | 139.3 | 80.4 | 42 |
| HINO | EF300 | 13216-1241A | 8 | 132 | 145.2 | 90.2 | 50 |
| HINO | | 13216-1011A | | | | | |
| HINO | EF500 | 13216-1252A | 8 | 135 | 145 | 90 | 50 |
| HINO | | 13216-1140A | | | | | |
| HINO | EF550 | 13216-1560A | 8 | 135 | 145.25 | 90.4 | 50 |
| HINO | | 13216-1140A | | | | | |
| HINO | EK100 | 13216-1224A | 6 | 137 | 145.33 | 90 | 50 |
| HINO | EK100T | 13216-1410A | 6 | 137 | 145.33 | 90 | 50 |
| HINO | EK200 | 13211-1900 | 6 | 137 | 145.5 | 90.3 | 50 |
| HINO | EF750 | 13216-1860A | 8 | 137 | 144.3 | 90.3 | 50 |
| HINO | | 13216-1170A | | | | | |
| HINO | EF750T | 13216-1742A | 8 | 137 | 144.3 | 90.3 | 50 |
| HINO | | 13216-1152 | | | | | |
| HINO | K13D | 13211-2470 | 6 | 137 | 144.2 | 90.3 | 50 |
| HINO | F17C | 13216-1910 | 8 | 139 | 144.3 | 90.35 | 50 |
| HINO | | 13216-1180 | | | | | |
| HINO | F17E | 13216-2110B | 8 | 139 | 144.3 | 90.35 | 50 |
| HINO | | 13226-1210B | | | | | |
| HINO | V22C | 13216-1842 | 10 | 139 | 144.3 | 90.25 | 50 |
| HINO | | 13226-1162 | | | | | |
| HINO | F20C | 13216-2671A | 8 | 146 | 138.3 | 84.3 | 50 |
| HINO | | 13226-1321A | | | | | |
| HINO | H06C | 13216-1750 | 6 | 108 | 121.5 | | 39 |
| HINO | H06CT | 13216-1810 | 6 | 108 | 121.5 | | 39 |
| HINO | EP100 | 13216-1450 | 6 | 120 | 144.6 | | 47 |
| HINO | EL100 | 13216-1272A | 6 | 116 | 130.6 | | 40 |
| HINO | K13C(12V) | 13216-2140 | 6 | 135 | 145.5 | | 50 |
| HINO | K13C(24V) | 13216-2330 | 6 | 135 | 145.5 | | 50 |
Competitive Advantage:
1. 100% New and quality guaranteed
2. in stock & fast delivery
3. full range items covering
4. 1 year Waranty
5. Service: most professional, efficient and reliable service
FAQ:
Q1.What is your sample policy?
A:We can supply the sample if we have read parts in stock,but the customers have to pay the sample cost and the courier cost.
Q2.What is your terms of payment?
A:T/T,Western Union.
Q3.What's your delivery time?
A:3 to 7 days.
Q4.How about your customer service and after-sales service?
A:24hrs on-line service. 48hrs problem sovled promise.
Q5.Do you have sapre parts in stock?
A:Yes.
Q6.Are you factory or trade company?
A:Industry and trade integration

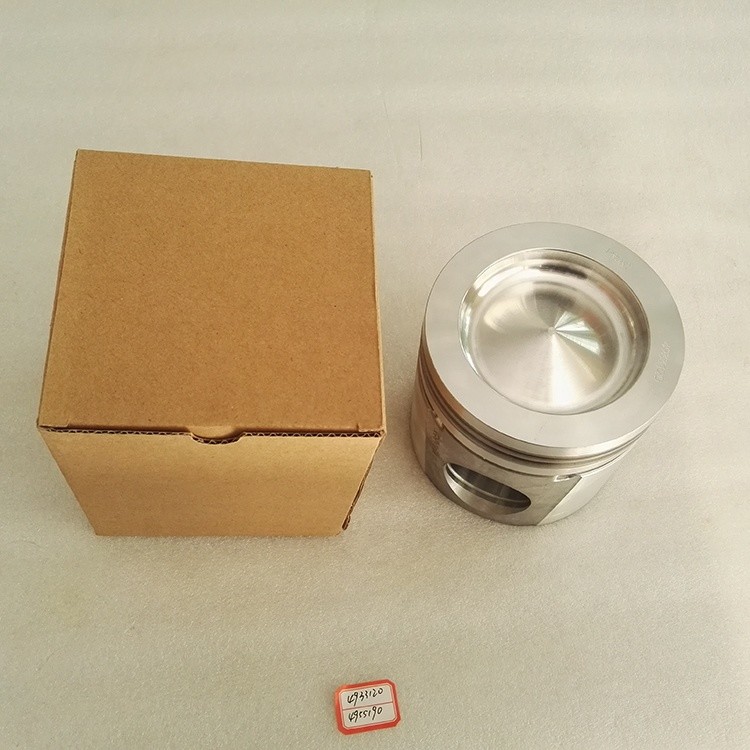

F17E PISTON SET PICTURE AS BELOW:
We also deal with other spart parts:
Welcome your enquiry at any time, we will always be here service for you!!!
