ISUZU Diesel Engine Spare Truck Part 6BG1 6BG1T Engine Block Piston105mm
Specifiions:
Details For 6BG1 6BG1T Diesel Engine Piston:
| E-Model | OEM No | Piston Size | Ring Size | No.CyI |
| 6BG1 | 1-12111-377-4
1-12111-528-0
1-12111-781-0 | Dia: | 105 | 3.0
2.5
4.0 | 6 |
| GL: | 94.5 |
| KH: | 55.3 |
| Pin Dia: | 35 |
| Length: | 87 |
| Remark | |
| 6BG1 4R | 8-97358-574-0 | Dia: | 105 | 3.5DK
2.5
4.0 | 6 |
| GL: | 94.5 |
| KH: | 55.2 |
| Pin Dia: | 35 |
| Length: | 87 |
| Remark | |
| 6BG1 3R | 1-12111-918-0
1-12111-626-0 | Dia: | 105 | 3.5
2.5
4.0 | 6 |
| GL: | 94.5 |
| KH: | 55.25 |
| Pin Dia: | 35 |
| Length: | 87 |
| Remark |
|
Description:
A series of engine models for ISUZU piston as below, there are many models not include in this sheet, pls also feel free enquiry from us.
| ISUZU | C240PK | | 4 | 86 | 84.5 | 51.5 | 27 |
| ISUZU | 4JA1 | 8-94152712-1 | 4 | 93 | 87.6 | 47.8 | 31 |
| ISUZU | 4JB1 | 8-94152711-0 | 4 | 93 | 92 | 51.8 | 31 |
| ISUZU | 4BD1 | 8-94422975-1 | 4 | 102 | 98 | 58.9 | 35 |
| ISUZU | 4BC2 | 5-12111-230-4 | 4 | 102 | 98 | 58.9 | 35 |
| ISUZU | 6BB1 | 5-12111-013-0 | 6 | 102 | 112.3 | 62.7 | 35 |
| ISUZU | 6BD1T | 5-12111-068-2 | 6 | 102 | 104.3 | 58.7 | 35 |
| ISUZU | 4BE1 | 8-94438989-1 | 4 | 105 | 95.7 | 56.4 | 35 |
| ISUZU | 6BG1 | 1-12111-323-2 | 6 | 105 | 95 | 55.5 | 35 |
| ISUZU | 6BF1 | 1-12111-345-0 | 6 | 105 | 110 | 58.75 | 35 |
| ISUZU | 10PA1 | 1-12111-154-1 | 10 | 115 | 113.2 | 75.2 | 38 |
| ISUZU | 10PB1 | 1-12111-217-0 | 10 | 115 | 104 | 67.8 | 38 |
| ISUZU | 10PC1 | 1-12111-419-1 | 10 | 119 | 104 | 67.7 | 38 |
| ISUZU | 10PD1 | 1-12111-549-3 | 10 | 119 | 106.5 | 67.5 | 43 |
| ISUZU | DH100 | 9-12111-742-3 | 6 | 120 | 150.83 | 77.8 | 45 |
| ISUZU | 6QA1 | 1-12111-388-1 | 6 | 125 | 136 | 83 | 46 |
| ISUZU | 6RB1 | 1-12111-437-0 | 6 | 135 | 142.9 | 82.1 | 50 |
| ISUZU | 6BG1(3R) | | 6 | 105 | 94.5 | 35 | |
| ISUZU | 6BG1(4R) | | 6 | 105 | 94.2 | 35 | |
| ISUZU | 4HG1 | 8-97183666-0 | 4 | 115 | 104.4 | 36 | |
| ISUZU | 6SD1 | 1-12111-569-0 | 6 | 120 | 117 | 43 | |
| ISUZU | 6SD1 | | 6 | 120 | 117 | 43 | |
| ISUZU | DA120 | | 6 | 100 | 125 | 34 | |
| ISUZU | DA640 | | 6 | 102 | 125 | 36 | |
| ISUZU | 6HE1 | | 6 | 110 | 119.8 | 40 | |
| ISUZU | 4HF1 | 8-97095-585-1 | 4 | 112 | 94.5 | 36 | |
| ISUZU | | 8-97176-655-0 | | | | | |
| ISUZU | 4HF1T | 5-87813-391-0 | 4 | 112 | 94.5 | 36 | |
| ISUZU | | 8-97176-656-0 | | | | | |
Why choose us?
High quality and competitive price.
Long life span, good sales-after service.
100% new, strict inspection & test.
Standard export packing.
One year quality warranty.
Have strong stock, small order is acceptable
Various kinds are selectable with different car models.
Over 15 years experience in this industry.

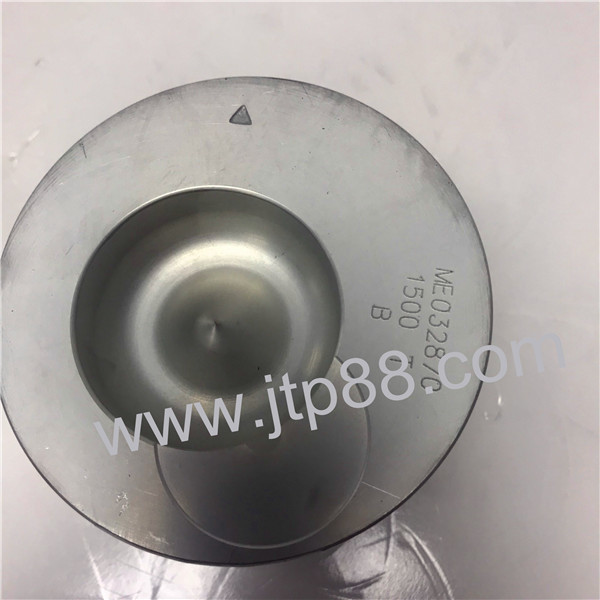

6BG1 6BG1T ENGINE PISTON PICTURE AS BELOW:
We also supply other engine spare part like Piston, Piston Ring, Cylinder Liner, Cylinder Head, Valve Train( IN Valve, EX Valve, Guide, Oil Seal, Seat), Main Bearing, Con Rod Bearing, Full Gasket Set, Head Gasket, Water Pump and Complete Engine Assembly.
If you have any question or problem,please feel free to contact us,we will reply you as soon as possible!
